Modbus2004

Product name:X2Modbus2004

Product model:Mod2004-ARM

Functional description:
X2Modbus is a very powerful protocol conversion gateway, where X represents different communication protocols, 2 is the To harmonics said conversion, the Modbus is ultimately support the standard protocol is Modbus protocol. The user can according to the field device configuration, communication protocol of into the standard Modbus protocol.After the PC simulation run correctly, uploaded to the protocol conversion gateway hardware. Note that this gatewayacquisition end and forward the Modbus register base address is from 1 (Base1)

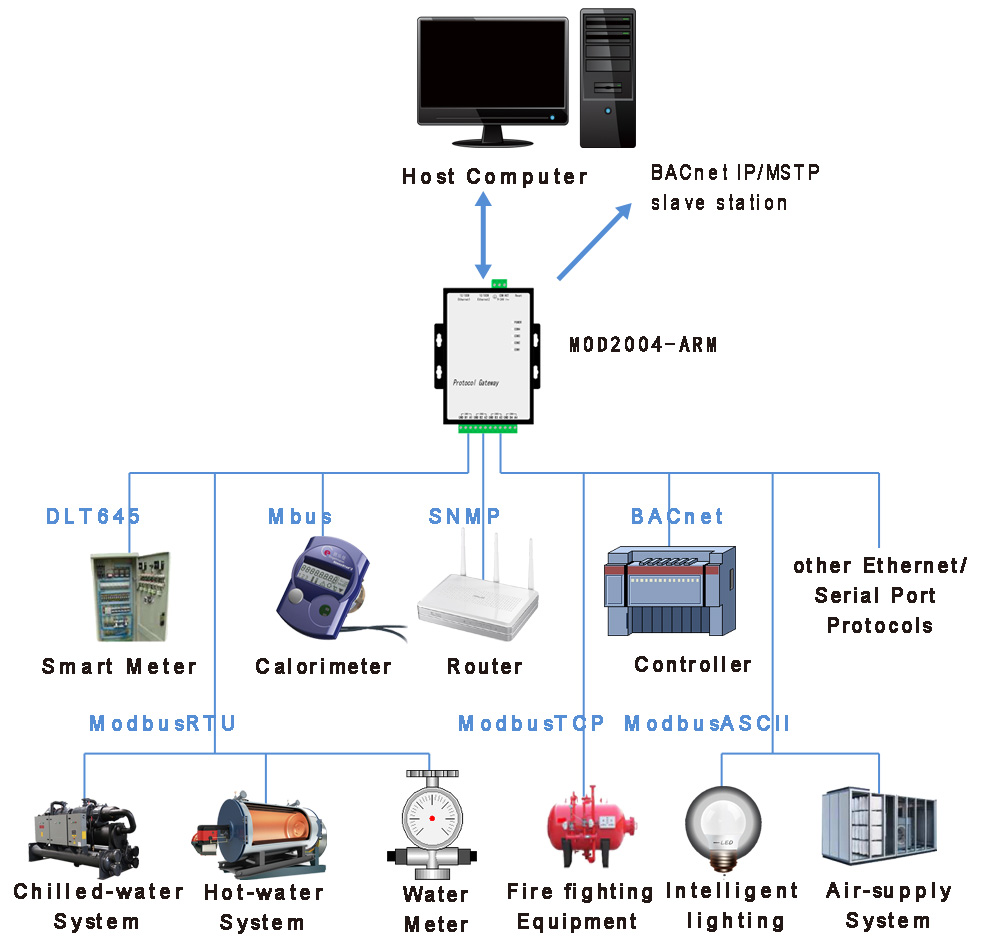

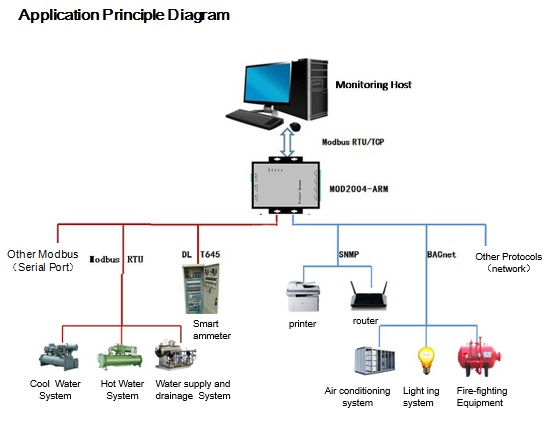

Working principle:
X2Modbus is equivalent to a communication bridge, will other non-standard communication protocol to the Modbus standard communication protocol, makes the PC software of support the Modbus protocol (such as Siemens WinCC, Wonderware Intouch, and control of kingview and force control configuration software) throughhardware protocol gateway can communicate with each other and different equipment, easy system integration.

Advantage:
1.Easy to Configure and Operation.
2.Support Java Script.
3.Support Chinese and English English,and easy to add any language if the user required.
4.Support PC simulation with X2Modbus.
5.Support the User review data and communication status. And download files and X2Modbus software from website.
6.Support different protocol transfer to Modbus Protocol.
7.Gateway support analog linear transformation, support function, high and low byte exchange function.
8.Support the user permission management.

Operation Platform
Support Windows XP/2000/2003/Win 7/Win8,
WEB with above IE8 version,Opera、Safari of apple、Google Chrome and firefox.

Supported Registered Type and Quantity
Gateway support ModbusTCP server and ModbusRTU servers, the two common types of server support register, gateway limit points to 1024 .


Modbus register type

Modbus register number

0xCoil Stauts

256

1xInput Stauts

256

4xHolding Register

256

3x Input Register

256

Application Fields
Hardware gateway is used to solve the Citect, ifixes, RSVIEW, WINCC, kingview, easy control, etc are unable to connect to some of the less common configuration software control equipment. For example, in the industrial control configuration software to access support BACnetIP protocol network controller, through hardware gateway into standard Modbus protocol, for supporting Modbus client software for a visit.

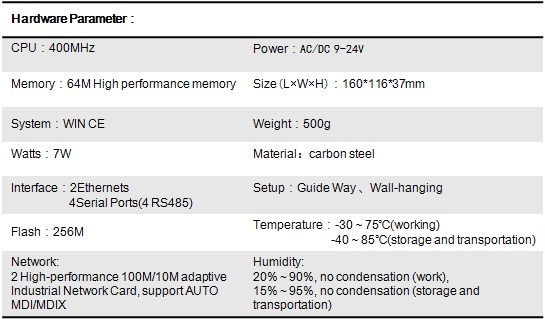

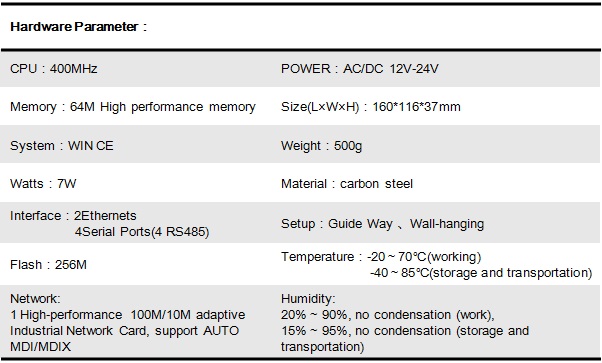

Features of Hardware
-Windows CE/32 Bit 400MHz RISC ARM926EJ
-DC24,7W
-Three layers of isolation
-2Ethernet port ,4RS485

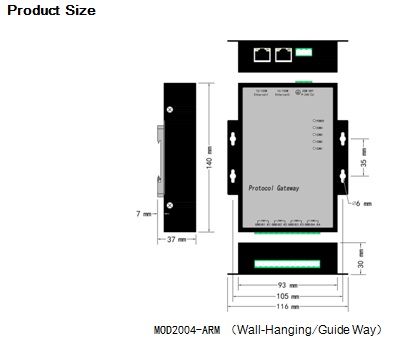

-Size: 140 x 116 x 30 mm, weight: 500 g
-aluminum alloy shell, installation method: wall, guide rail type

Support below protocols

1 BACnet IP
2 BACnet MS/TP
3 Modbus RTU
4 Modbus ASCII
5 Modbus TCP
6 Modbus UDP
7 Modbus RTU_TCP
8 Modbus RTU_UDP
9 Modbus ASCII_TCP
10 Modbus ASCII_UDP
11 OPC XML-DA OPC
12 SNMP
13 Simulator
14 MBus_HYDROMETER_SCYLAR548
15 MBus_HYDROMETER_SHARKY773
16 MBus_HYDROMETER_SHARKY774
17 MBus_Honeywell
18 MBUS_AKE
19 MBUS_XinTuo
20 MBus_Landis_Gyr
21 MBus_Siemens_FUE950
22 MBUS_MaiTuo
25Hitachi Elevator BA Iterface
26 Mitsubishi Elevator SMOS-PS2
27 Mitsubishi Elevator KLR-F485
28 Otis Elevator BA Interface
29 ModbusTCP_Thyssenkrupp_Elevator
30 Mitsubishi Elevator MAIEZ
31 Modbus_Otis Elevator
32 Modbus_Kone elevator
33 Modbus_Kone elevator ASCII
34 DLT645-1997
35 DLT645-2007
36 Modbus PM800
37 Modbus IEM3000
38 CDT
39 EMERSON_ACM03U1
40 Http BA
41 Joton Tmaster
42 VRVManager
43 VotonThermostat
44 Hitachi_Chiller
45 Mitsubishi FX1S
46 MEGMEET_MC200
47 Mitsubishi FX2N
48 Mitsubishi FX3U
49 Mitsubishi FX_485ADP_485BD
50 Haiwell E/S PLC
51 Haiwell H/N PLC
52 Panasonic FP
53 XINJE PLC
54.Siemens S7-200 PPI
55.Siemens S7-200 Network
56.Siemens S7-300 Network
57.Siemens S7-1200 Network
58.XT55 GPS SERVER
59 DyNet
60.Modbus LDS LDS
61.MicroPara_DR0816
62.MicroPara_DR1220
63.LitePuter_DP_105E
64.LitePuter_PLNET
65.MicroPara
66.SANTAK UPS
67.DELTA UPS ES3000
68.LEGRAND UPS
69.EMERSON_HIPULSE
70.Cibsolar_CA
71.Kaseman GRC TNC-6
72.JB-3208 CRT
73.Siemens Cerberus FS18
74.LTM9662_485NETM9600
75.Buhler_MEAF
76.FFU
77.HeFei_Ahhfat
78.Panasonic MINAS A5
79.SINOLY JINE_JA05
80.SAUTER_CASE_VAV
81.saj110 _AlarmSystem
82.EMEC_LDPH
83.RKC_CH402

If you have any other proprietary protocol development, not development fee, only need to send the equipment, the development cycle of 2 weeks.
If you have any question, please contact Shanghai Sunfull 021-58776098 support@opcmaster.com
