Product Model: SNMP1001-ARM ( DIN-Rail Mount)
Function Description：
SNMP Gateway, SNMP1001-ARM (featuring 1 Ethernet port and 1 RS485 serial port, dynamically supporting 256 points). It can convert Modbus RTU and more than 500 protocols to SNMP server.
The gateway utilizes X2SNMP software for configuration, where "X" in X2SNMP means various acquisition-end protocols, "2" is a homophone for "To" indicating conversion, and “SNMP" signifies the ultimate support for standard SNMP protocol.
Runtime environment：
OS：Win 7, Win8, Win10, Win11, Win Server 2008, Win Server 2016, and more.
Browser： Google Chrome, Microsoft Edge, Apple's Safari, Firefox, Opera, and 360 Speed Mode.
Register Type:

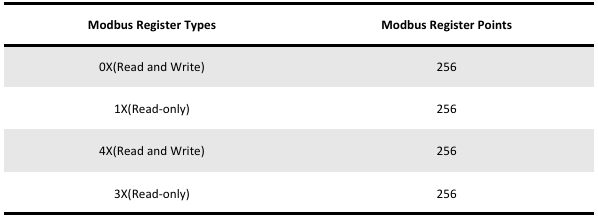

SNMP gateway supports SNMP servers. The supported register types and maximum number of points for the server are listed in the table below.
Note: The number of gateway registers is dynamically supported, with each type of register capable of supporting up to the total number of points supported by the gateway
Software Features：
- Green and installation-free, supporting both Chinese and English;
- Support convert more than 500 protocols to SNMP(v1,v2,v3),OPC UA;
- Support Web browsing for real-time data viewing;
- Support linear conversion, bit extraction, and high-low byte swapping;
- Support internal variables and device online/offline status checking;
- Support JS scripts and triggers for logical control;
- X2SNMP software is easy configuration, with 256 points configurable within 10 minutes.
- New Protocol can be added in 2 weeks.

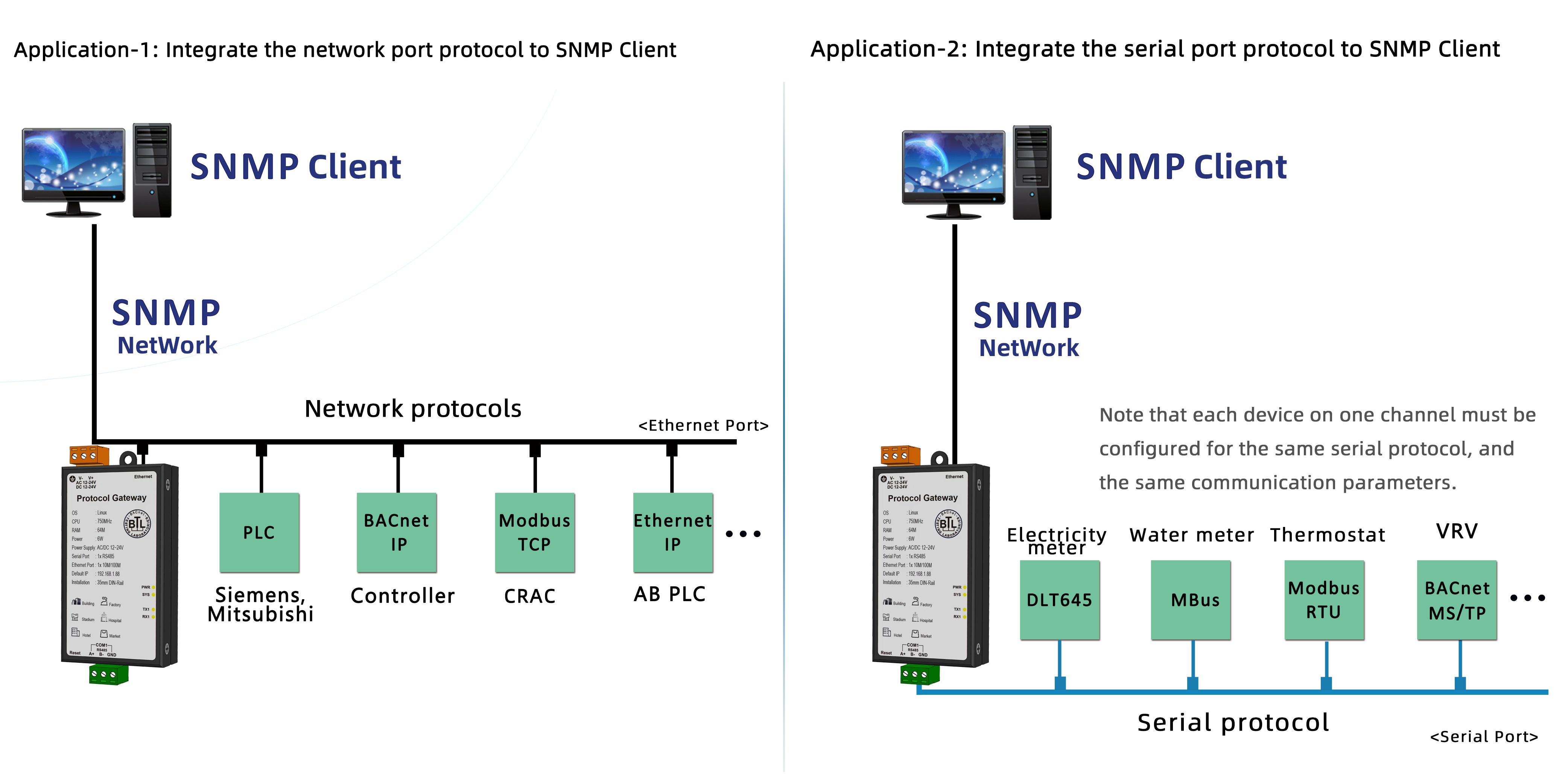

Application Principle Diagram
Product Size
