Product Model: IEC1001-ARM ( DIN-Rail Mount)
Function Description：
IEC Gateway IEC1001-ARM (1 Ethernet port, 1 RS485 serial port, dynamically supports 256 points). It supports the collection and forwarding of over 500 protocols into the IEC104 protocol.
The gateway uses X2IEC104 software for configuration, where "X" in X2IEC104 represents various acquisition-side protocols, "2" is a homophone for "To" indicating conversion, and "IEC104" is the final supported standard, the IEC104 protocol.
Users can configure based on the communication protocol of the on-site equipment, converting it into the standard IEC104 protocol. After simulating and running error-free on the PC, it can be uploaded to the hardware protocol conversion gateway.
Note that the base address for IEC104 registers on both the acquisition side and the forwarding side of this gateway starts from 0.
Application Fields:
Hardware gateway supports multiple protocol conversion, can solve PLC, air conditioning, elevator, fire control, lighting control system, electric meter, water meter of different products, through the hardware gateway will be Modbus, BACnet and other various different protocols into IEC104 protocol, so that the IEC104 client configuration software can access the site through the X2IEC104 gateway equipment, implementation data acquisition, data monitoring, and remote reading scene temperature, and alarm status data.
Runtime environment：
OS：Win 7, Win8, Win10, Win11, Win Server 2008, Win Server 2016, and more.
Browser： Google Chrome, Microsoft Edge, Apple's Safari, Firefox, Opera, and 360 Speed Mode.
Register Type:

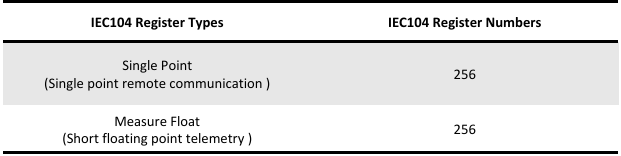

The IEC104 gateway supports the conversion of various protocols into the IEC104 protocol. The register types and maximum number of points supported by the IEC104 gateway are listed in the table below.
Note: the gateway register number is dynamic support, each register can be built up 256 points.
Software Features：
- Green and installation-free, supporting both Chinese and English;
- Support more than 500 protocols to IEC104 server, OPC UA;
- Support Web browsing for real-time data viewing;
- Support linear conversion, bit extraction, and high-low byte swapping;
- Support internal variables and device online/offline status checking;
- Support 2 types of Regsiter:Single Point、Measure Float;
- X2IEC104 software is easy configuration, with 256 points configurable within 10 minutes.
- New Protocol can be added in 2 weeks.

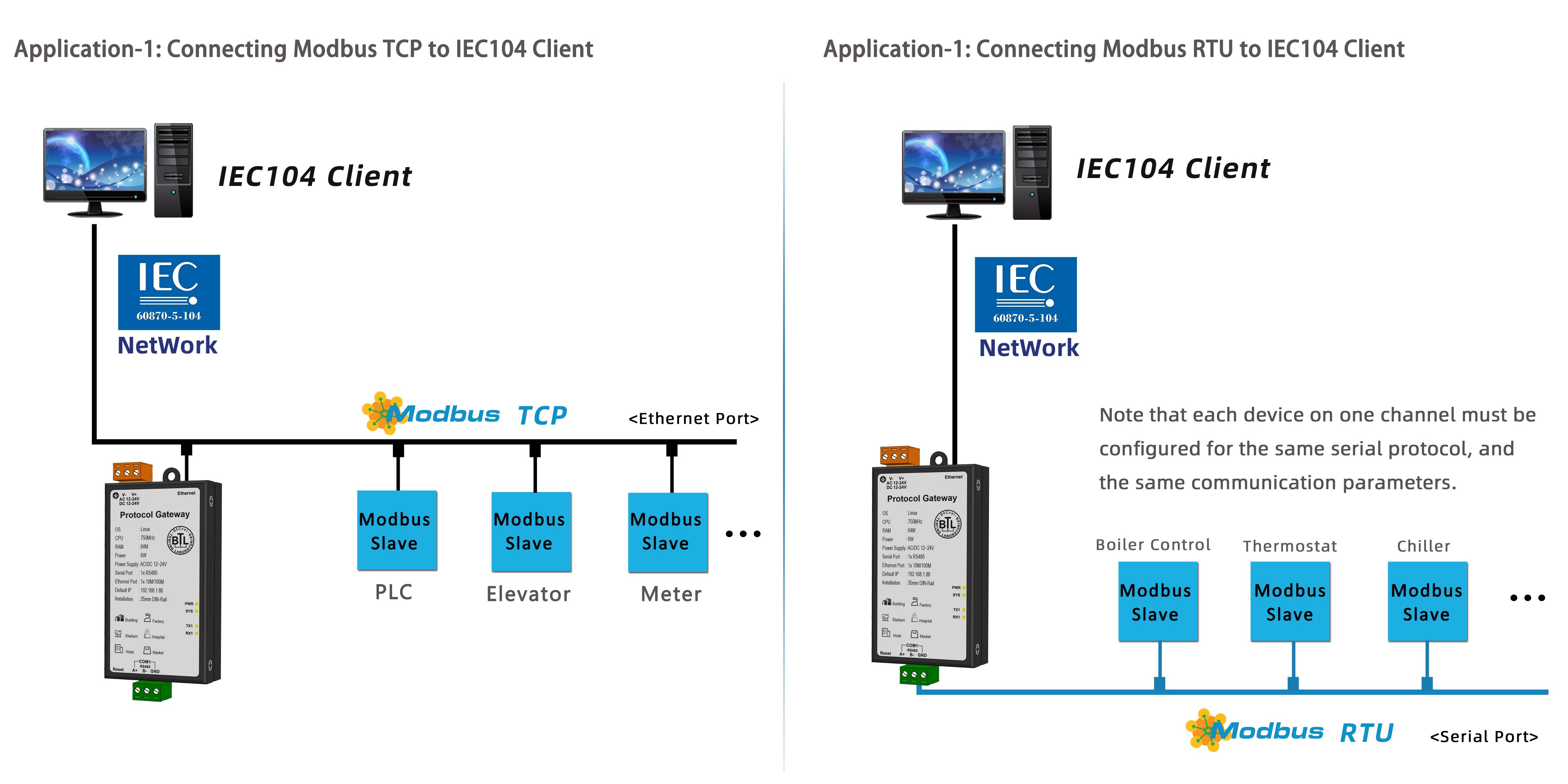

Application Principle Diagram

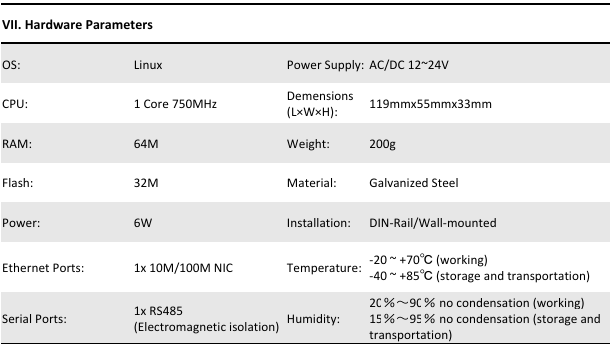

Product Size
