Functional Description：

           DDC1002-12800 (1 Ethernet, 2 serial port, 12 DI, 8 DO, dynamically supports 512 points) only supports collecting Modbus RTU/TCP and Simulator driver, and convert it to BACnet IP and Modbus TCP servers simultaneously. Using X2View software to make the project(can’t make configuration pages).
          User can configure the project according to the communication protocol document of on-site Modbus RTU/TCP device , and convert it to a standard BACnet IP and Modbus TCP server. After monitoring successfully on the local monitor mode, upload the project file to DDC module to access the data of on-site device (Note: The decimal address of the collection end starts from 1 (Base1), and the hexadecimal address starts from 0 (Base0); The Modbus register base address of the transfer end starts from 1 (Base1).

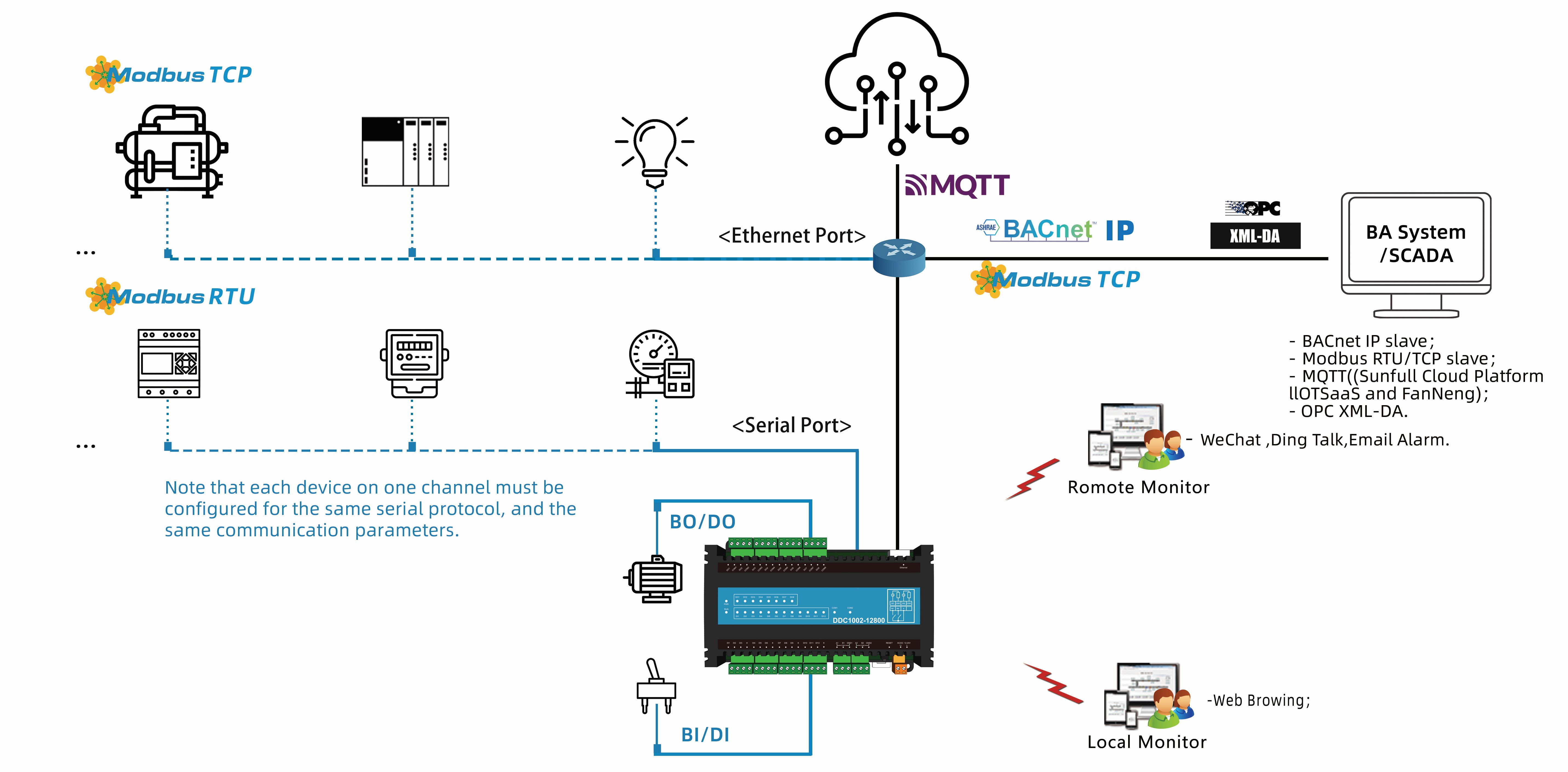

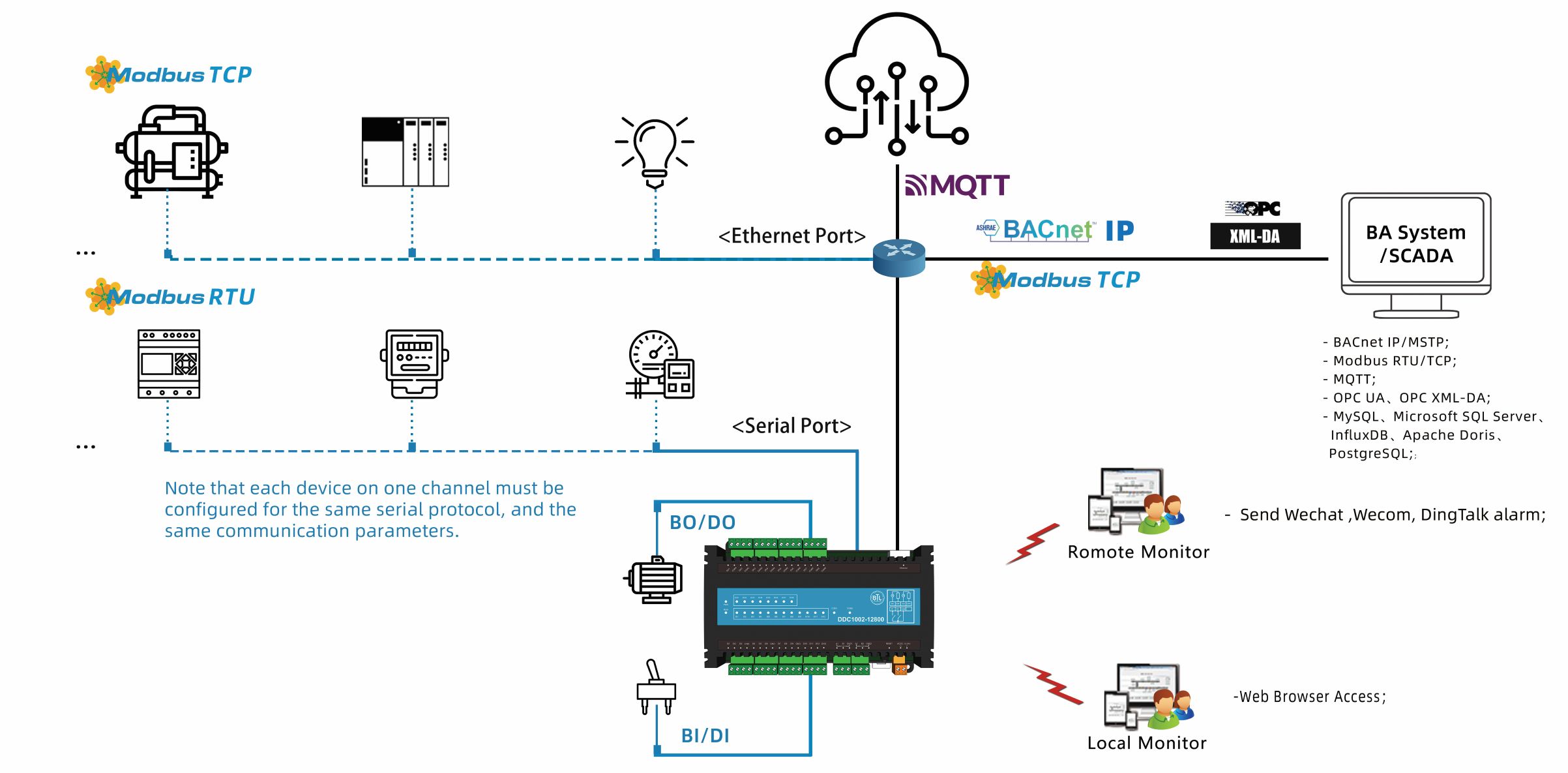

         Application Fields ：

        Integrate PLC, DDC, temperature controller, elevator, air conditioning, UPS, fire protection, intelligent lighting, electricity meter, water meter, etc Modbus RTU devices into your BACnet-based building control system, such as Metasys from Johnson, EBI or Niagara from Honeywell, Insight or Desigo CC from Siemens, EBO from Schneider etc, and traditional configuration software, such as Citect, IFIX, RSVIEW, WinCC, Kingview, Force Control etc.


        Operating Environment ：

         X2View software: support Win7、Win8、Win10、 Win11、Win Server2008、Win Server2016 etc. OS Hardwareis equipped with a built-in web server, supporting browsers like Google Chrome, Microsoft Edge, Apple Safari, Mozilla Firefox, Opera, and 360 Speed Mode.

        Support register type and number
        Note: Register points are dynamically supported and the total number of points cannot exceed 512.

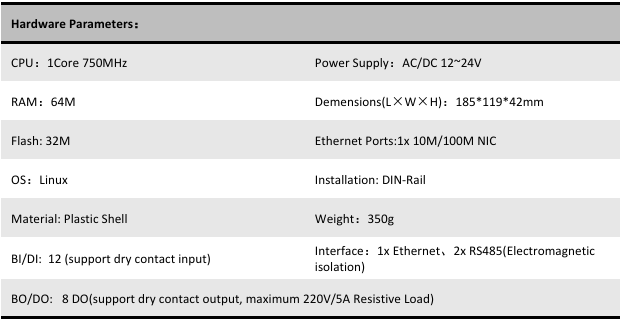

          Main Parameter：

         Model specification：

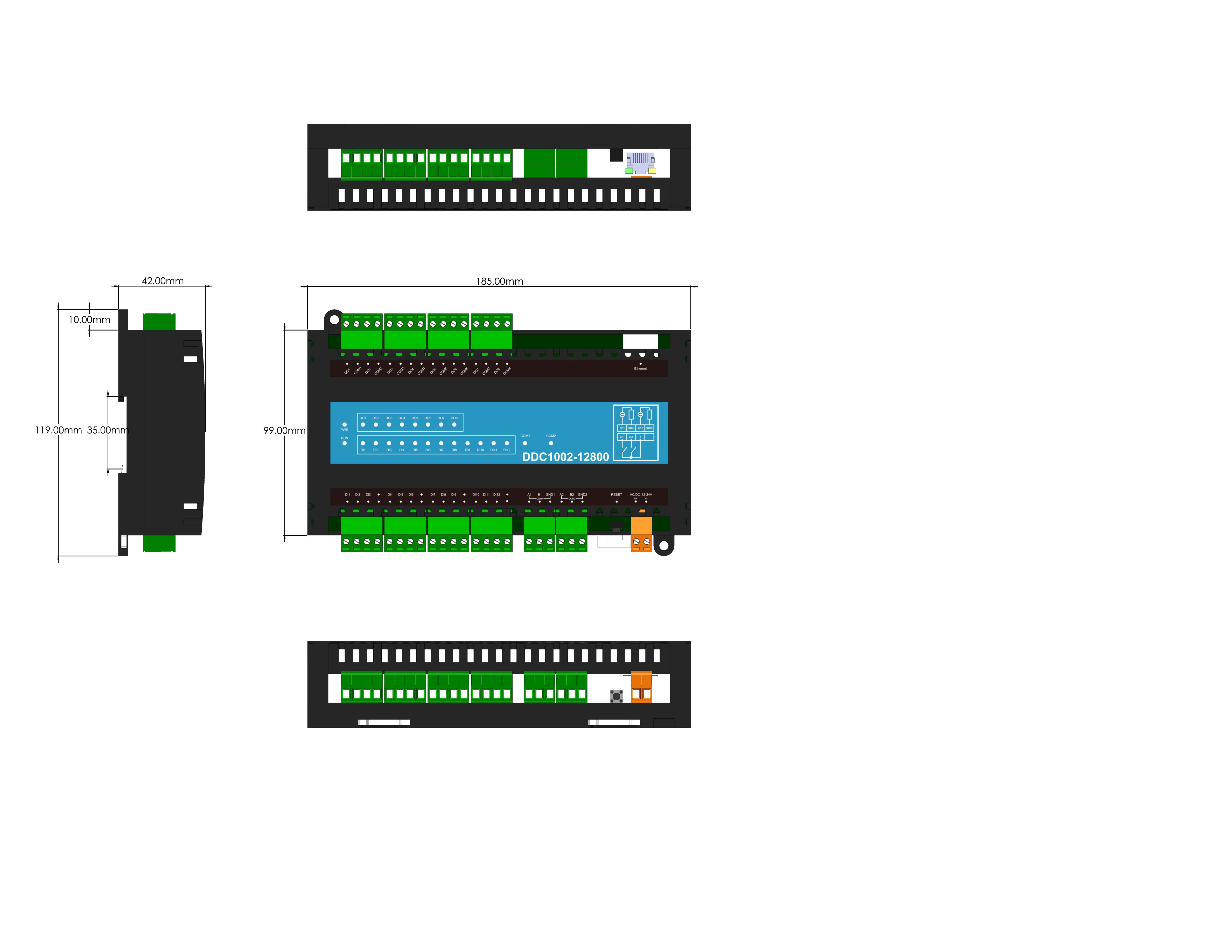

          Product display ：


          Correspondence diagram of controller wiring diagram
