Milesgo 7inch Touch Panel 86 type box installation
Product model:I7-1002 (With gateway function)
Functional Description： I7-1002 is a new generation of WEB HMI based on HTML5 specification independently developed by Shanghai Sunfull ,which can realize the on-site data monitoring and directly transform to the configuration screen for real-time data monitoring. It has the characteristic of easy operation of general configuration In addition, touch screen configuration software can run on the embedded system. Compared to other configuration software, the biggest highlight is completely based WEB development, a user-created configuration project, can be downloaded to run on the touch screen、 Telephone、IPad or PC can be accessed through a browser ,and the open data interface is integrated by third-party systems.
Application field： I7-1002 supports conversion to standard BACnet servers and Modbus servers.It is applied to Building Automatic Control system or industrial field to connect some uncommon control equipments,such as PLC,DDC,UPS,central air conditioner,elevator,fire control system,light control system,electricity meter, water meter,etc. This allows users to monitor on-site devices via WEB HMI I7-1001 or mobile phone ,iPAD,or PC.
Runtime environment：
OS：Win 7/Win8/Win10/Win Server 2003/Win Server2008 etc.
Browser： IE9(and above) 、Safari、Google Chrome、firefox、Opera etc.

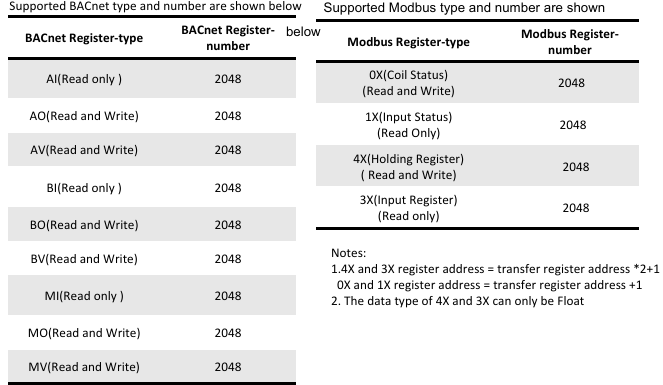

Register Type&Num
Number of Registers is dynamic, each register can be built up to 2048 points.
Hardware Parameter
|
